उत्पाद विवरण:
|
| प्रमाणन: | CE | स्थिति: | नया |
|---|---|---|---|
| वेवलेंथ: | 1070 एनएम | वेल्डिंग मोड: | निरंतर |
| लेजर शक्ति: | 1500W- 3000W | शीतलन प्रणाली: | पानी की मदद से ठंडा करने वाले उपकरण |
| पल्स चौड़ाई: | 0.5-15 एमएस | बार-बार सटीकता: | ± 0.01 मिमी |
| प्रयोग: | धातु वेल्डिंग | वोल्टेज: | 380V/220V, 50/60Hz |
| प्रमुखता देना: | 1500W handheld fiber laser welder,fiber laser welding machine with nitrogen system,integrated nitrogen laser welding machine |
||

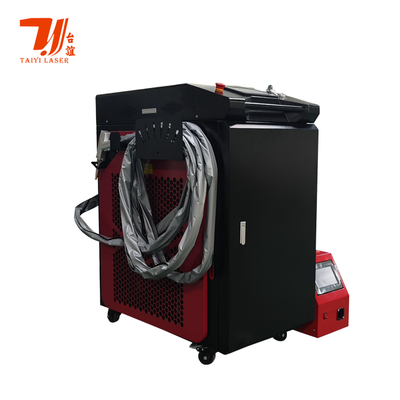

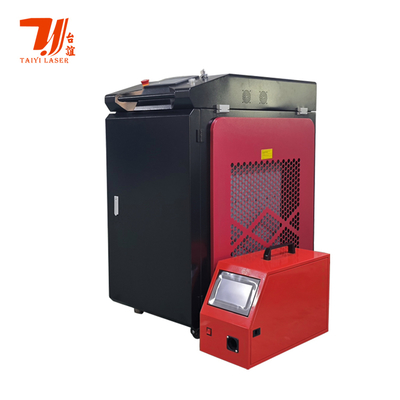

| Product Name | Integrated Nitrogen Generation System Laser Welding Machine | |||||
| Laser Power | 1500W/2000W/3000W optional | |||||
| Laser Wavelength | 1070nm | |||||
| Welding Method | Continue | |||||
| Welding Gap | ≤0.5MM | |||||
| Welding Thickness | 0.5-10mm | |||||
| Welding Speed | 0-120 mm/s | |||||
| Working Humidity | <70% | |||||
| Fiber Length | 10M | |||||
| Cooling Method | Water Cooling | |||||
| Nitrogen concentration |
99.99% | |||||
| Intake pressure |
0.6-0.8MPa | |||||
| Nitrogen gas pressure |
0.5-0.8MPa | |||||
| Rated intake |
1m³/min | |||||
| Voltage | 220V/380V 50Hz/60Hz | |||||
| Welding Thickness Comparison Table(mm) | ||||
| Water-Cooling Handheld Laser Welding machine | ||||
| Power | Stainless Steel | Carbon Steel | Aluminum | Galvanized Steel |
| 1500W | 0.8~4.0 | 0.8~4.0 | 0.3~2.0 | 0.5~3.0 |
| 2000W | 1.0~5.0 | 1.0~5.0 | 0.5~3.0 | 1.0~4.0 |
| 3000W | 1.5~7.0 | 1.5~7.0 | 1.0~4.0 | 1.5~5.0 |
| 6000W | 3.0~12.0 | 3.0~12.0 | 2.0~6.0 | 2.5~8.0 |
| Air-Cooling Handheld Laser Welding machine | ||||
| Power | Stainless Steel | Carbon Steel | Aluminum | Galvanized Steel |
| 800W | 0.3~1.5 | 0.3~1.5 | 0.1~0.8 | 0.3~1.2 |
| 1200W | 0.5~2.5 | 0.5~2.5 | 0.2~1.0 | 0.5~2.0 |
| 1750W | 0.8~3.0 | 0.8~3.0 | 0.3~1.5 | 0.8~2.5 |
| 2000W | 1.0~4.0 | 1.0~4.0 | 0.5~2.0 | 1.0~3.5 |
